System checks - Poolside

Use dive to validate infrastructure readiness at each stage of deploying the Poolside inference stack. Run pre-flight checks before installation to catch configuration issues early, post-flight checks after installation to confirm correct operation, and GPU node checks to validate host-level configuration on every GPU node in the cluster.

How it works

`dive check` (pre- and post-flight)

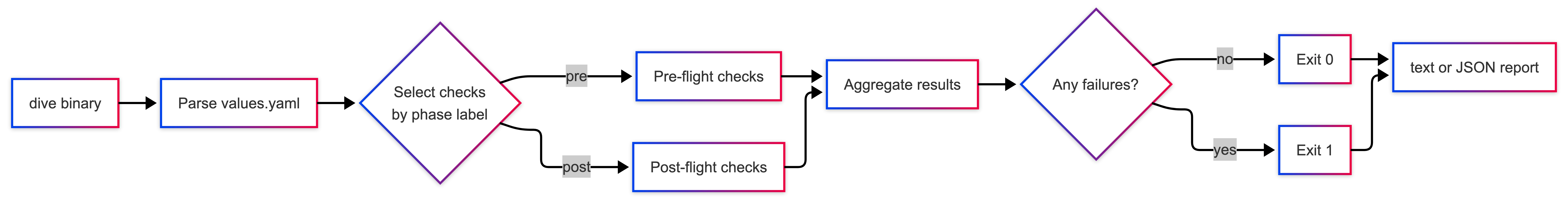

Dive pre- and post-flight checks flowchart

dive check reads a single values.yaml, which is the same file you pass to the inference Helm chart. It builds the external clients each check needs (Kubernetes API, S3, HTTP) lazily on first use, then runs the selected checks concurrently, up to 8 at a time by default. Results are streamed to stdout as each check finishes; the process exits non-zero if any check returns fail or error.

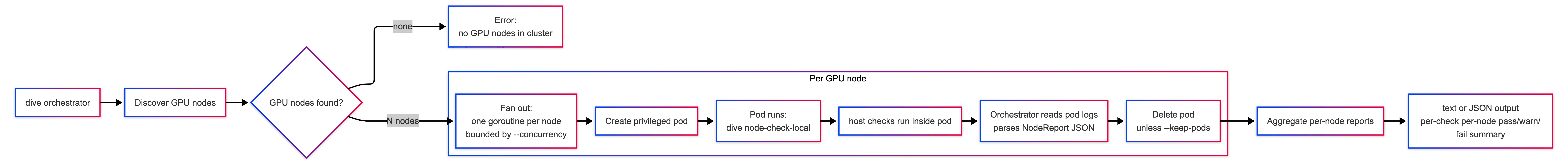

`dive node-checks`

dive node-checks is an orchestrator that runs from any machine with cluster access (your laptop, a CI runner, a bastion). It discovers GPU nodes and for each one deploys a short-lived privileged pod that mounts the host’s /sys and /proc read-only. The pod runs the hidden node-check-local subcommand of the same dive binary, performs all 10 host-level checks, and prints a JSON report to its logs. The orchestrator collects those logs, parses the reports, and aggregates them into a single per-node summary. The pod requires root and privileged mode because reading PCIe Relaxed Ordering capabilities from /sys/bus/pci/devices/*/config (raw PCI config space) requires root even inside a privileged container.

Prerequisites

Requirement	Notes
`kubectl` + `KUBECONFIG`	Must point at the target cluster with sufficient permissions
NVIDIA GPU Operator >= 26.3.0	Required for GPU Operator health check; nodes must have `nvidia.com/gpu.present=true` label or `nvidia.com/gpu` allocatable resource
`inference` chart `values.yaml`	Prepared with `image.tag`, `s3.bucket`, and `s3.region` at minimum
dive image (for `node-checks`)	Must be pushed to a registry the cluster nodes can pull from

Locate the dive binary

When using a Poolside bundle, the dive binary is included as a tarball alongside the other bundle binaries in ./binaries.

Distribute the dive image

For dive node-checks, the cluster nodes must be able to pull the dive image. When using a Poolside bundle, the dive image is included as a tarball in ./containers alongside the other bundle images:

# Upload all bundle images (including dive) to your internal registry
./scripts/upload_images.sh <target-registry>

# Then reference it when running node checks
dive node-checks \
  --namespace dive-node-checks \
  --image <target-registry>/poolside/dive:v1

Air-gapped clusters: In an air-gapped environment, the cluster nodes reach the dive image through the mechanism your environment already relies on, such as an internal registry or an image cached on each node. Make the image available through that mechanism, then pass its reference to --image. Because the check pods set imagePullPolicy: IfNotPresent, a cached image is used without a registry pull even when the tag is :latest.

Run pre-flight checks

Run these checks before installing the Helm chart to catch configuration and environment issues early.

dive check \
  --values values.yaml \
  --namespace poolside-models \
  --pre

Pre-flight check reference

Check name	What it validates	Fail / Warn / Skip conditions
`values_required`	`image.tag`, `s3.bucket`, and `s3.region` are all set in `values.yaml`	Fail if any field is empty
`k8s_version`	The Kubernetes API server version is >= 1.29.0	Fail if the Kubernetes version is below the minimum required version
`node_resources`	At least one schedulable node exists with allocatable CPU and memory resources. Reports the total schedulable node count, CPU, and memory	Fail if no schedulable nodes are found
`inference_namespace_exists`	The namespace where the inference stack is installed exists	Fail if namespace is missing
`inference_checkpoint_objects`	The configured S3 bucket contains at least one object. This confirms model checkpoints have been uploaded	Fail if bucket is unconfigured, unreachable, or empty
`inference_images_pullable`	The configured inference container image exists in the registry. This probes the OCI manifest endpoint	Fail on HTTP 404 or transport errors; Warn if the image or registry is not configured; Warn on 401/403 because auth may be satisfied at runtime by IAM Roles for Service Accounts (IRSA) or a pull secret
`public_docs_image_pullable`	When offline documentation is enabled, the configured `public-docs` container image exists in the registry. This probes the OCI manifest endpoint	Skip if `docs.enabled=false`; Fail if the image is not configured, missing, or unreachable; Warn on 401/403 because auth may be satisfied at runtime by IRSA or a pull secret
`inference_gpu_capacity`	At least one schedulable node has `nvidia.com/gpu` allocatable resources	Fail if no GPU nodes are found
`inference_nvidia_driver_version`	Every GPU node labelled `nvidia.com/gpu.present=true` is running NVIDIA driver >= 580.65.06. This is the minimum required by the `atlas` container	Fail if any node is below minimum; Warn if driver version labels are absent because GPU Feature Discovery may not have run yet
`inference_gpu_operator_healthy`	The NVIDIA GPU Operator is installed (searched in `gpu-operator`, `nvidia-gpu-operator`, then all namespaces) and GPU resources are available to the scheduler	Fail if operator is absent or no `nvidia.com/gpu` resources are allocatable; Warn if GPUs are schedulable but operator was not found (unsupported configuration)
`inference_multi_node_capable`	On multi-node clusters (>= 2 GPU nodes), at least one node has a high-speed interconnect: `rdma/hca` allocatable resource or `nvidia.com/gpu.interconnect=NVLink` label	Skip for single-node clusters; Warn if multiple GPU nodes exist but no high-speed interconnect is detected. Multi-node parallelism then falls back to PCIe/ethernet
`s3_endpoint_reachable`	TCP connectivity to a custom S3 endpoint (`s3.apiUri`) can be established within 5 seconds	Skip if `s3.apiUri` is not set because standard AWS S3 is used; Fail if the endpoint is unreachable
`s3_credentials_secret`	The Kubernetes Secret named in `s3.secretName` exists and contains `AWS_ACCESS_KEY_ID` and `AWS_SECRET_ACCESS_KEY`	Skip if `s3.secretName` is empty because IRSA or pod identity provides credentials; Fail if the secret is missing or incomplete
`pull_secrets_exist`	Every secret listed in `global.imagePullSecrets` exists in the required namespaces	Skip if no pull secrets are configured; Fail if any secret is missing
`ingress_tls_valid`	Every entry in `ingress.tls[]` has a non-empty `secretName`	Skip if ingress is disabled or no TLS entries are configured; Fail if any TLS entry is missing `secretName`
`route_tls_valid`	When OpenShift Route TLS is enabled with `edge` or `reencrypt` termination, both `certificate` and `key` are provided	Skip if route or route TLS is disabled; Fail if cert/key are missing for termination modes that require them

Run post-flight checks

Run these checks after the Helm chart is installed to verify that the inference stack is operating correctly.

dive check \
  --values values.yaml \
  --namespace poolside-models \
  --post

Post-flight check reference

Check name	What it validates	Fail / Warn / Skip conditions
`inference_pods_healthy`	All pods in the inference namespace are `Running`/`Ready` or `Completed`, with no `CrashLoopBackOff`, `ImagePullBackOff`, or `Error` states	Fail if any pod is in a terminal failure state; Warn if pods are `Pending` or `NotReady`
`inference_model_pods_running`	All model server `Deployments` (label `app.kubernetes.io/component=inference`) have at least one available replica, and no checkpoint download init containers are stuck	Fail if no model Deployments are found or image pull errors are detected; Warn if deployments are not ready yet because checkpoint download can take several minutes
`inference_vllm_auth_secret`	The Kubernetes Secret named in `authentication.secretName` exists and contains the `VLLM_API_KEY` data key	Skip if `authentication.secretName` is not configured because API key auth is disabled; Fail if secret or key is missing
`inference_metrics_scrape`	Fetches `/metrics` from each configured ingress host and parses vLLM, SGLang, or TensorRT-LLM Prometheus metrics. Reports `requests_running`, `requests_waiting`, `kv_cache_usage`, and `prefix_cache_hit_rate`	Skip if ingress is disabled; Fail if no host returns valid metrics; Warn if only some hosts respond
`inference_model_chat_completions`	For each model with a configured `ingressHost` or `routeHost`, calls `GET /v1/models` to discover model IDs, then sends a minimal one-token chat completion request to `POST /v1/chat/completions`	Skip if no model ingress hosts are configured; Fail if any model endpoint is unreachable or returns an error; Warn if a host is reachable but no models are loaded yet
`dns_resolves`	All ingress hostnames (from `ingress.tls[].hosts`, `models[].ingressHost`, `models[].routeHost`) resolve via DNS	Skip if ingress or route is disabled; Fail if any hostname does not resolve
`endpoint_reachable`	All ingress hosts respond to `GET /health`. This confirms the ingress controller and TLS termination are working	Skip if ingress or route is disabled; Fail if an endpoint is unreachable with a transport error; Warn if an endpoint returns an unexpected HTTP status code or a TLS error because cert-manager may still be issuing the certificate

Run GPU node checks

Run these checks to validate that every GPU node’s host configuration is optimal for GPU workloads. This is independent of any Helm values file and can be run before or after installing the inference stack.

dive node-checks \
  --namespace dive-node-checks \
  --image <target-registry>/poolside/dive:v1 \
  --create-namespace

Node check reference

Checks are classified as hard (returns fail) or soft (returns warn):

Check name	Hard/Soft	What it validates	Why it matters	Fix
`iommu_passthrough`	Hard	Kernel cmdline contains `iommu=pt` or IOMMU is disabled	Translation mode adds DMA overhead that destroys GPU-to-GPU and GPUDirect RDMA bandwidth	Add `iommu=pt` to the kernel cmdline and reboot
`acs_disabled`	Hard	No PCI bridge has Access Control Services (ACS) enabled in a way that blocks GPU peer-to-peer traffic	ACS forces P2P traffic through the root complex, destroying NVLink and GPUDirect RDMA performance	Disable ACS on affected bridges or add `pci=noacs` to the kernel cmdline
`numa_gpu_affinity`	Hard	Every GPU (`nvidia.com/gpu` device) has a valid NUMA node assignment (NUMA node >= 0)	NUMA node `-1` means the kernel cannot determine locality, causing remote-memory-access penalties for GPU DMA buffers	Check ACPI tables and PCIe topology; this often indicates a firmware or BIOS configuration issue
`numa_gpu_distribution`	Hard	GPUs are evenly distributed across NUMA nodes (counts differ by at most 1)	Uneven distribution suggests incorrect PCIe topology or broken ACPI tables, leading to asymmetric memory access costs	Review BIOS/UEFI PCIe topology settings
`cpu_governor`	Hard	The CPU frequency scaling governor is `performance` on every CPU	`powersave` or `ondemand` cause frequency-scaling jitter affecting data loading, NCCL host code, and CUDA launch latency	`cpupower frequency-set -g performance`
`cpu_cstates`	Soft	Deep C-states (C2+) are limited; `max_cstate <= 1` is recommended	Deep C-states add wakeup latency; CPUs must respond quickly to CUDA completion events	Add `intel_idle.max_cstate=1` or `processor.max_cstate=1` to the kernel cmdline
`transparent_hugepages`	Hard	Transparent Huge Pages (THP) is set to `madvise` or `never`, not `always`	`always` causes latency spikes from THP compaction during memory allocation, stalling `cudaMalloc` and data loading	`echo madvise > /sys/kernel/mm/transparent_hugepage/enabled`
`gpu_pcie_relaxed_ordering`	Soft	PCIe Relaxed Ordering is enabled on GPU devices (only when EFA/RDMA devices are present)	Without Relaxed Ordering, EFA/IB RDMA writes to GPU memory take a slower path, reducing cross-node bandwidth	Configure via BIOS/UEFI PCIe settings or GPU firmware; see NVIDIA documentation
`kernel_numa_balancing`	Hard	`kernel.numa_balancing` sysctl is `0`	NUMA balancing migrates pages between nodes, conflicting with GPU DMA mappings and causing performance jitter	`sysctl -w kernel.numa_balancing=0`
`zone_reclaim_mode`	Hard	`vm.zone_reclaim_mode` sysctl is `0`	Non-zero values cause aggressive page reclaim within NUMA zones, leading to memory pressure and GPU DMA buffer eviction	`sysctl -w vm.zone_reclaim_mode=0`

acs_disabled and numa_gpu_* checks are skipped automatically on nodes with no detected GPUs. gpu_pcie_relaxed_ordering is skipped when no EFA/RDMA devices are present.

Output formats

Both dive check and dive node-checks support --output text (default) and --output json.

Text output

Color-coded, human-readable. Each check prints one line with a status symbol followed by the check name, then indented detail lines:

✓ [PASS] inference_gpu_operator_healthy
    NVIDIA GPU Operator healthy in "gpu-operator" with 4 node(s) having nvidia.com/gpu resources available
✗ [FAIL] inference_nvidia_driver_version
    NVIDIA driver version < 580.65.06 on GPU node(s): node-1 (driver 535.104.12)
    Fix: Upgrade the NVIDIA driver to >= 580.65.06 (GPU Operator handles this automatically when configured correctly)
! [WARN] inference_multi_node_capable
    4 GPU nodes found but no high-speed interconnect detected (rdma/hca resource or nvidia.com/gpu.interconnect=NVLink label)
    Detail: Multi-node tensor parallelism uses PCIe/ethernet, which may reduce throughput
− [SKIP] s3_credentials_secret
    S3 credentials secret not configured; assuming IRSA or pod identity provides credentials

JSON output

Machine-readable, suitable for CI pipelines. Each result is an object with name and a nested result object. The result object contains status, message, optional detail, and optional fix:

[
  {
    "name": "inference_gpu_operator_healthy",
    "result": {
      "status": "pass",
      "message": "NVIDIA GPU Operator healthy in \"gpu-operator\" with 4 node(s) having nvidia.com/gpu resources available"
    }
  },
  {
    "name": "inference_nvidia_driver_version",
    "result": {
      "status": "fail",
      "message": "NVIDIA driver version < 580.65.06 on GPU node(s): node-1 (driver 535.104.12)",
      "fix": "Upgrade the NVIDIA driver to >= 580.65.06"
    }
  }
]

For dive node-checks --output json, the top-level object contains nodes (array of per-node results), summary (aggregate pass/warn/fail/skip/error counts), and errors (nodes that could not be checked).

Exit codes

Exit code	Meaning
`0`	All checks passed, warned, or were skipped, with no hard failures
`1`	One or more checks returned `fail` or `error`

CLI reference

`dive check`

dive check --values <values-file-path> --namespace <namespace> [--pre] [--post] [flags]

Flag	Default	Description
`--values`	(required)	Path to the `inference` chart `values.yaml`
`--namespace`	(required)	Target namespace for deployment checks. This is where the inference stack is installed
`--pre`	`false`	Run pre-install checks
`--post`	`false`	Run post-install checks
`--output`	`text`	Output format: `text` or `json`
`--concurrency`	`8`	Maximum number of checks to run in parallel

At least one of --pre or --post must be specified. Both can be combined in a single invocation.

`dive node-checks`

dive node-checks --namespace <namespace> --image <dive-image> [flags]

Flag	Default	Description
`--namespace`	(required)	Namespace to run check pods in (must exist unless `--create-namespace` is set)
`--image`	(required)	Dive image the check pods run. It must be pullable by cluster nodes
`--create-namespace`	`false`	Create `--namespace` if it does not exist (requires `namespaces` create permission)
`--timeout`	`5m`	Per-node timeout waiting for the check pod to complete
`--concurrency`	`8`	Maximum number of nodes to check in parallel
`--output`	`text`	Output format: `text` or `json`
`--keep-pods`	`false`	Retain check pods after collecting results (useful for debugging)
`--sysfs-root`	`/host/sys`	In-pod mount path for the host `/sys`
`--proc-root`	`/host/proc`	In-pod mount path for the host `/proc`

`dive version`

dive version

Prints the build version string.

Required RBAC for `dive node-checks`

The credentials of the user running dive node-checks must allow the following operations:

Resource	Verbs
`namespaces`	`get` (plus `create` only when `--create-namespace` is set)
`nodes`	`list`
`pods`	`create`, `get`, `delete`
`pods/log`	`get`

Example ClusterRole:

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: dive-node-checks
rules:
  - apiGroups: [""]
    resources: ["nodes"]
    verbs: ["list"]
  - apiGroups: [""]
    resources: ["namespaces"]
    verbs: ["get", "create"]
  - apiGroups: [""]
    resources: ["pods"]
    verbs: ["create", "get", "delete"]
  - apiGroups: [""]
    resources: ["pods/log"]
    verbs: ["get"]
